TPS74301RGWT

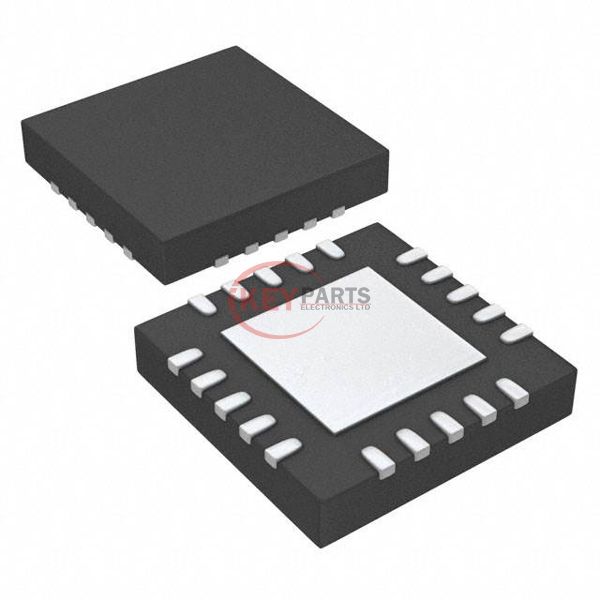

Enlarger

Lmages are for reference only See Product Specitications

Texas Instruments TPS74301RGWT

Manufacturer :
Texas Instruments
Mfr. Part # :
TPS74301RGWT
Description
IC REG LIN POS ADJ 1.5A 20VQFN
Catalog
PMIC - Voltage Regulators - Linear
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TPS74301RGWT PDF
In Stock
1138
TPS74301RGWT Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)5.5V
Voltage - Output (Min/Fixed)0.8V
Voltage - Output (Max)3.6V
Voltage Dropout (Max)0.12V @ 1.5A
Current - Output1.5A
Current - Quiescent (Iq)115 µA
Current - Supply (Max)1.5 mA
PSRR73dB ~ 42dB (1kHz ~ 800kHz)
Control FeaturesEnable, Power Good, Tracking
Protection FeaturesOver Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case20-VQFN Exposed Pad
Supplier Device Package20-VQFN (5x5)
Request Quote Now
Request Quote Now

We can supply TPS74301RGWT, use the request quote form to request TPS74301RGWT pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TPS74301RGWT. The price and lead time for TPS74301RGWT depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TPS74301RGWT. We look forward to working with you to establish long-term relations of cooperation.
